UA HPC Information

Laura Condon, Oct, 2018 (Updated) Quinn Hull, Nov 2020

(Updated) Rachel Spinti, Feb 2021

Description

Running notes with links and tips for running on the UA HPC system. Feel free to update and add to this document as needed. UA has multiple HPC systems. These docs contain instructions for both

Ocelote Quick Start

A good starting point. Tutorial highlights essential steps in running a basic job on HPC Ocelote.

  1. How to log in
  2. What a login node is
  3. What a job scheduler is
  4. How to access software
  5. How to run a job on HPC

https://public.confluence.arizona.edu/display/UAHPC/Ocelote+Quick+Start

Puma Quick Start:

Tutorial below highlights essential steps in running a basic job on HPC Puma.

  1. How to log in
  2. What a login node is
  3. How to access software (Note: it is different than Ocelote, see https://public.confluence.arizona.edu/display/UAHPC/Puma+Quick+Start#PumaQuickStart-AccessingSoftware)
  4. How to write a SLURM script
  5. How to run a job on Puma

https://public.confluence.arizona.edu/display/UAHPC/Puma+Quick+Start

UITS Account Management

To set-up a UA HPC account if you have not activated one. Sign-in and go to “Manage Your Accounts”

https://account.arizona.edu/welcome

HPC portal

https://portal.hpc.arizona.edu

Logging in

_ssh username@hpc.arizona.edu (e.g. roberthull@hpc.arizona.edu)_

Should give you a choice to connect to Ocelote - if not you can type menuon to get the menu

  • Type ocelote to enter the real HPC system

HPC Browser Dashboard (OnDemand)

https://ood.hpc.arizona.edu/pun/sys/dashboard

A GUI that allows you to monitor jobs and access files outside the terminal. Can be easier to view and/or edit files this way than in command line.

How to run Python in a Jupiter notebook on UAHPC

It might be easiest to run Python using a Jupyter Notebook, for which UAHPC has developed super convenient GUIs. Check here for a great tutorial.

https://account.arizona.edu/welcome

Instructions for setting up and account

https://public.confluence.arizona.edu/display/UAHPC/Account+Creation

Accessing Software via Module commands

https://docs.hpc.arizona.edu/display/UAHPC/Accessing+Software

Module list (gives loaded modules)

Module avail (gives list of all modules)

Module show NAME (gives info on a specific module

Storage and limits

https://docs.hpc.arizona.edu/display/UAHPC/Allocation+and+Limits

50GB on home/uxx/netid (ex home/u8/roberthull)

200GB (no Backups) on extra/netid

/temp - 840GB available per node. You can use this during the job and then do a final write to a shared array. (You cannot permanently save anything to this location)

No more than 600files/GB ~1.6 MB per file

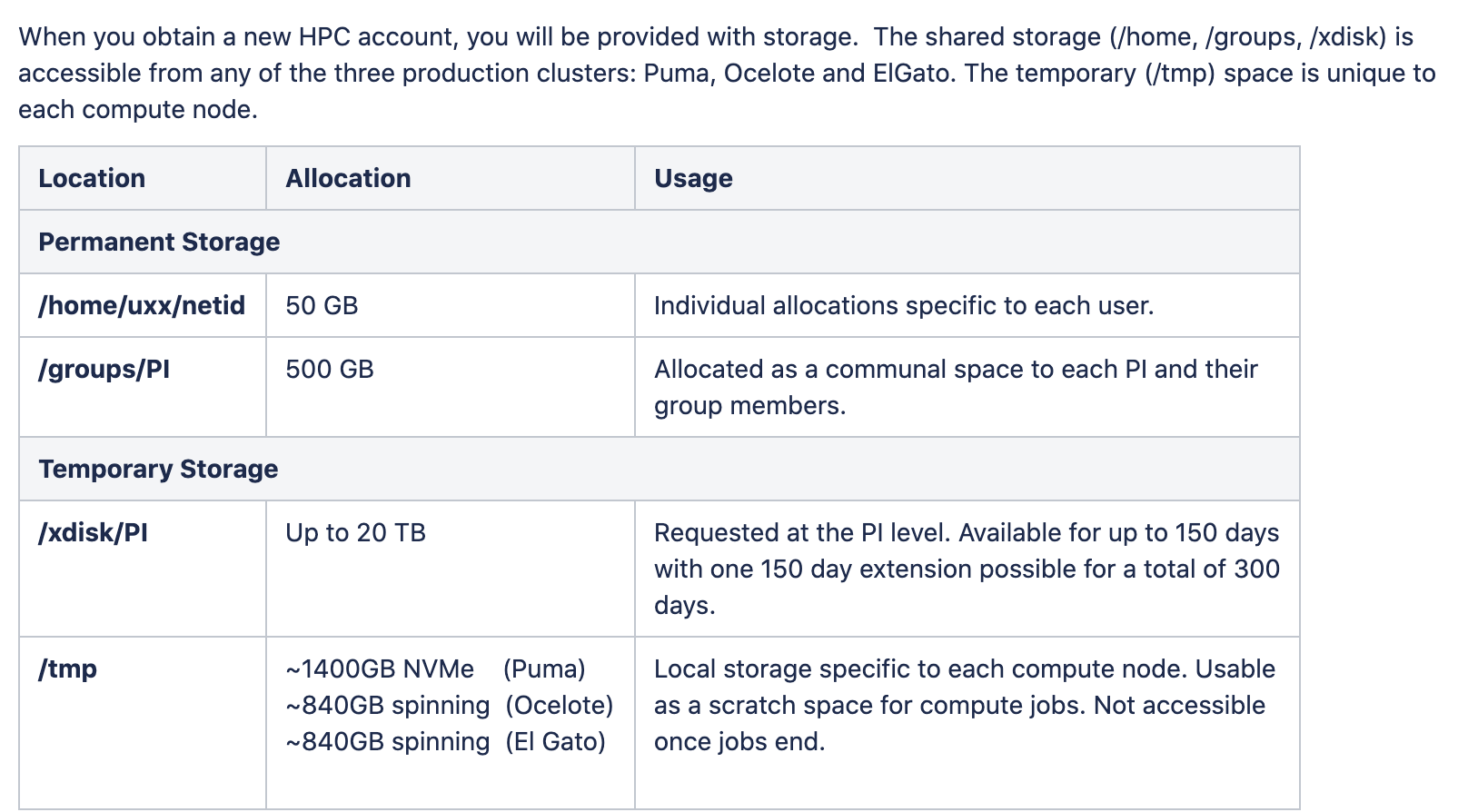

tabel describing UA HPC storage allocation

There is a total time limitation for our group (36,000 hours/month), use command va to check the remaining time of the month.

Uploading files to UAHPC:

If Globus can be used on UAHPC you should. I (Ben West) am not sure if it can because I have not tried. Directions are in general info.

https://public.confluence.arizona.edu/display/UAHPC/Transferring+Files

  1. (small files) Use the GUI web terminal https://ood.hpc.arizona.edu/pun/sys/dashboard

    1. Log on
    2. Click ‘Files’ in top left corner
    3. Select Directory to which you want to add files (e.g.
    4. Click Upload and navigate to the local file location.
    5. To use the file, navigate to the file location by clickingOpen in terminal

  2. (big files <100 GB). Use sftp, scp or rsync using filexfer.hpc.arizona.edu if you can't use Globus

    Copy your files through through the transfer node like below:

    _scp -rp file.txt &lt;netid>[@filexfer.hpc.arizona.edu](mailto:lecondon@filexfer.hpc.arizona.edu):&lt;directory>_

    Example: If I (roberthull) want to upload a python script (test.py) to my home directory (/home/u8/roberthull) the command would look like the below

    _scp -rp test.py roberthull[@filexfer.hpc.arizona.edu](mailto:lecondon@filexfer.hpc.arizona.edu):_/home/u8/roberthull

    *** Remember that on all HPC systems your files will be purged after a certain amount of time it is your job to be aware of the purge policies and copy your outputs somewhere appropriate for longer term storage.

    *** Note as shown above scp requires http://filexfer.hpc.arizona.edu/ rather than hpc.arizona.edu

ParFlow on UAHPC

_If you want to run with one of the versions of ParFlow that has already been build just add these lines to your bashrc and make sure that you aren’t also setting ‘PARFLOW_DIR’ to the appropriate location in your bashrc file. _

ssh [username@hpc.arizona.edu](mailto:username@hpc.arizona.edu)

cd $HOME

vi ~/.bashrc

# Add the following lines to this file

module load unsupported

module load lecondon/parflow/latest

# You can check if things look right using the commands

which parflow

echo $PARFLOW_DIR

You can also install parflow using the instructions in general info

Time Allocation

Each PI has a finite amount of time allocation each month. After each run completes, the _run_name.o####### _file will show the amount of time left in the standard queue each month. Each time you submit a script, the system makes sure that your request can be fulfilled in the given queue - otherwise, it returns an error message. If you’re requesting more time than you have for the rest of the month, you can: 1) reduce the amount of time you are requesting, 2) submit it to the windfall queue, or 3) wait until the end of the month and try again next month. Your advisor may not be okay with you trying option 3.

Accessing and using software (like Python)

General: https://public.confluence.arizona.edu/display/UAHPC/Accessing+Software

Python: https://public.confluence.arizona.edu/display/UAHPC/Using+and+Installing+Python

Conda: https://public.confluence.arizona.edu/display/UAHPC/Open+On+Demand

Summary: Many software are installed on the server (> 100). Note that both Python and Anaconda exist, which allow for the installation of Python packages and usage of conda virtual environments.

Python:

There are four versions of Python on Ocelote, (up to Python 3.6.5).

Python 3.6.5 is loaded with ‘module load python’, and includes machine learning packages like Tensorflow. (Does it include PyTorch?)

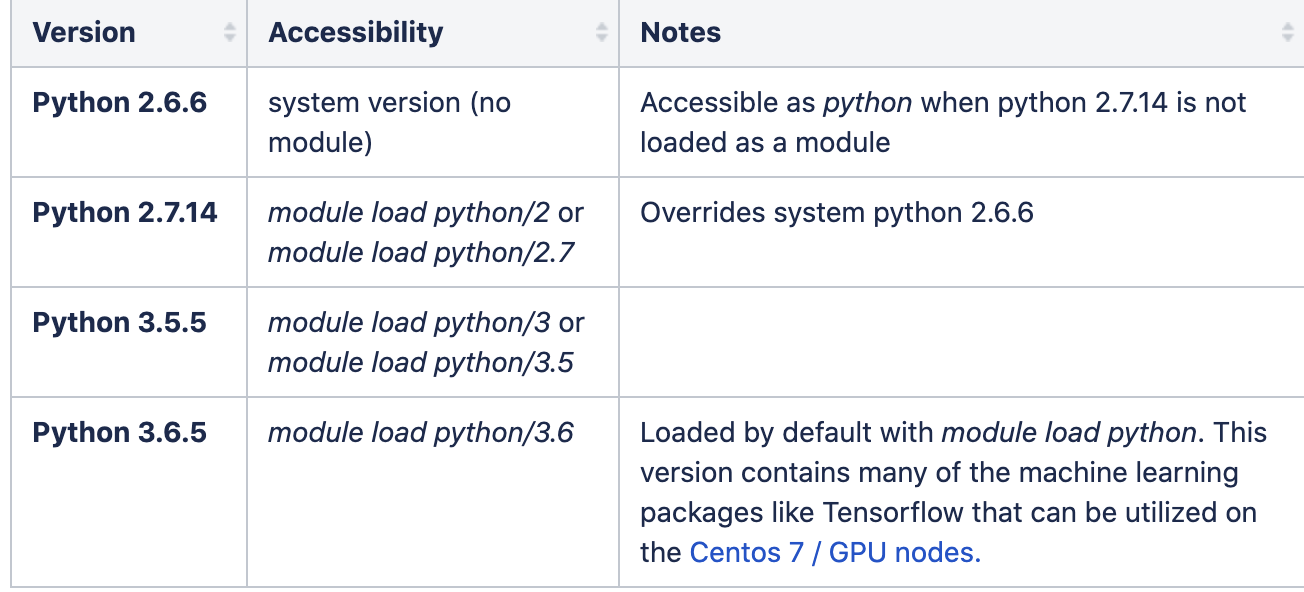

Python versions available in Ocelot and their included pacakges

There are three versions of Python in ElGato (up to Python 3.8.0).

Python 3.8.0 is loaded with ‘module load python/3.8/3.8.0’

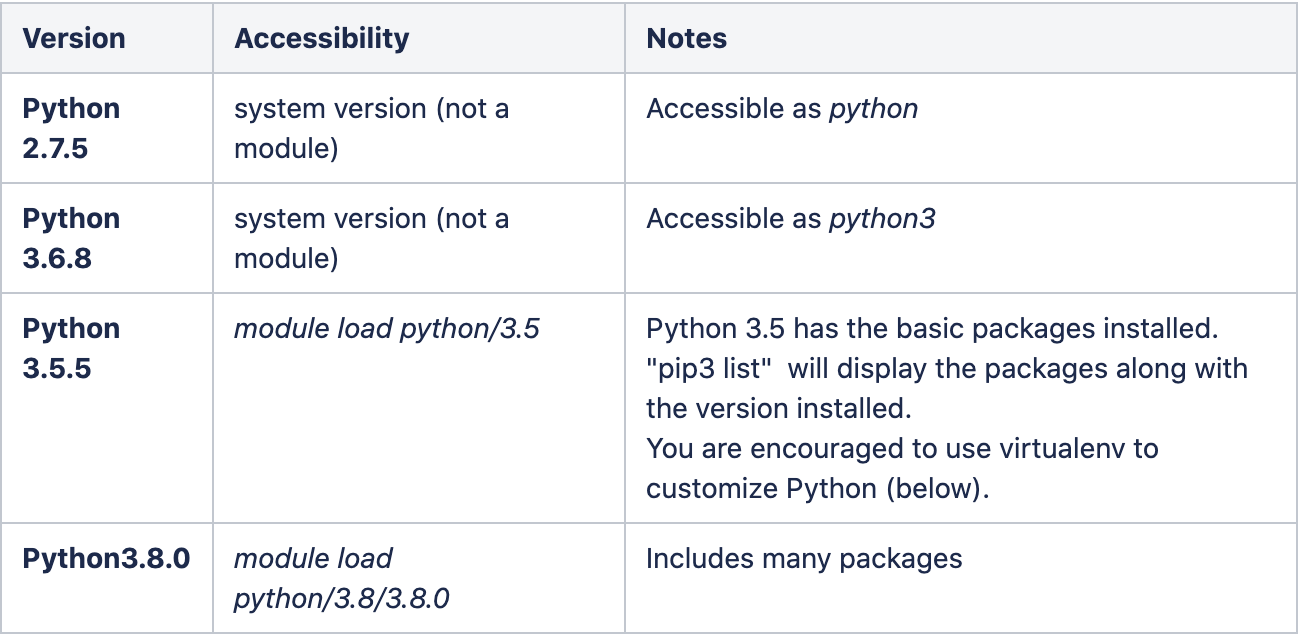

Python versions available in El Gato and their included pacakges

There are two versions of Python in Puma (up to Python 3.8.2)

How to do a basic script in Python

  1. Log in via terminal or bash
    • see the "Logging In" section
  2. Find Python modules
    • module avail python
    • This will list availalbe python modules. e.g. python/3.6/3.65
  3. Load Python
    • module load python/3.6/3.65
  4. Add/Create/Locate the script you want to run pytorch_helloworld.py -> print("hello world")
  5. Create and edit pbs script (note important fields)
    touch pytorch_helloworld.pbs
vim pytorch_helloworld.pbs

Example PBS workflow

# --------------------------------------------------------------
### PART 1: Requests resources to run your job.
# --------------------------------------------------------------
### Optional. Set the job name
#PBS -N pytorch_helloworld
### REQUIRED. Specify the PI group for this job
#PBS -W group_list=lecondon
### Optional. Request email when job begins and ends
### PBS -m bea
### Optional. Specify email address to use for notification
### PBS -M roberthull@email.arizona.edu
### REQUIRED. Set the queue for your job.
#PBS -q windfall
### REQUIRED. Set the number of nodes, cores and memory that will be used for this job
### pcmem is optional as it defaults to 6gb per core. Only required for high memory = 42gb.
#PBS -l select=1:ncpus=1:mem=6gb:pcmem=6gb
### REQUIRED. Specify "wallclock time" required for this job, hhh:mm:ss
#PBS -l walltime=0:1:0
### Optional. cput = time x ncpus. Default: cput = walltime x ncpus.
#PBS -l cput=0:1:0
# --------------------------------------------------------------
### PART 2: Executes bash commands to run your job
# --------------------------------------------------------------
### Load required modules/libraries if needed
module load python/3.6/3.6.5
### change to your scripts directory
cd ~/python
### run your work
python3 pytorch_helloworld.py
sleep 10i

  1. Submit job via qsub qsub pytorch_helloworld.pbs3592178.head1.cm.cluster

  2. Follow job progression via qstat

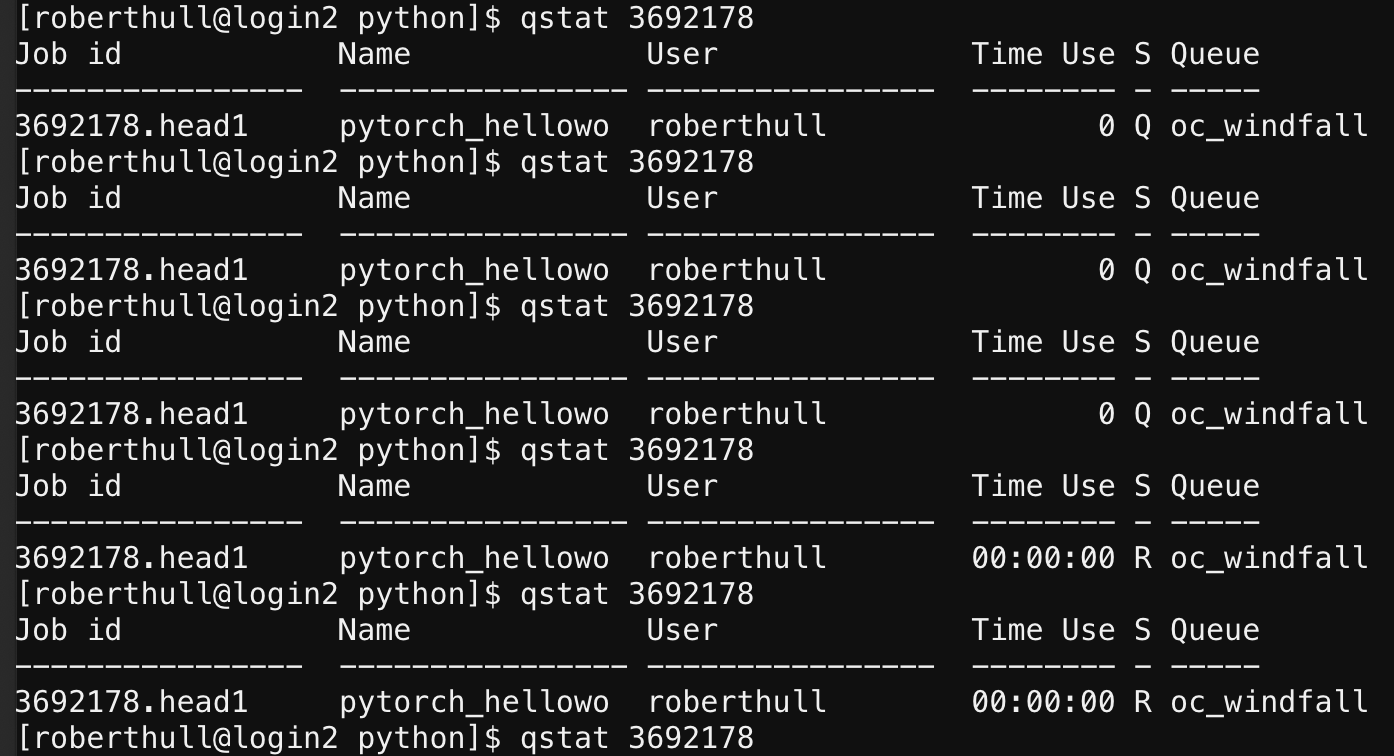

terminal output for qstat progress

  1. View results of job <jobname>.o<number> for results, `.e for errors
    • Look at results: vim pytorch_helloworld.o3692196 -> hello world
    • If there are errors use: vim pytorch_helloworld.e3692196

How to run a more complicated Python script in terminal on UAHPC

  1. Log in via terminal or bash (go to Ocelote)
    • See the "Logging in" section
  2. Log in via terminal or bash
    • see the "Logging In" section
  3. Find Python modules
    • module avail python
    • This will list availalbe python modules. e.g. python/3.6/3.65
  4. Load Python
    • module load python/3.6/3.65
    • Take care that you load the version of python that you need. That includes considerations of what packages are available via UAHPC, and how you’ve installed custom packages in your virtual environment
    • Also, you can check what python versions are available and/or are loaded using module list
  5. Activate your virtual environment (create it if necessary)
    • virtualenv --system-site-packages ~/mypyenv_oc_py.3.6
    • source ~/mypyenv_oc_py3.6/bin/activate
    • Take care to use a virtual environment compatible with your version of python and with your super computer of choice (Ocelote v ElGato)

  6. Add/Create/Locate the script you want to run

    • Pytorch_gpus.py → runs a simple gpu script
    • Note if you use custom packages you will need to manually reference the location of your virtual environment in the following way within your python script:

  7. Check which packages you have in your virtual environment, pip list (note that python/3.6/3.6.5 for ocelote has almost everything you would ever want to have…)

  8. Install any packages that you think you need to run your desired script
    • pip install <name_of_package>
  9. Create and edit pbs script (note important fields)
#!/bin/bash

# --------------------------------------------------------------

### PART 1: Requests resources to run your job.

# --------------------------------------------------------------

### Optinal. Set the job name

#PBS -N pytorch_gpus_n1

### REQUIRED. Specify the PI group for this job

#PBS -W group_list=lecondon

### Optional. Request email when job begins and ends

### PBS -m bea

### Optional. Specify email address to use for notification

### PBS -M &lt;YOUR NETID>@email.arizona.edu

### REQUIRED. Set the queue for your job.

#PBS -q windfall

### REQUIRED. Set the number of nodes, cores and memory that will be used for this job

### pcmem is optional as it defaults to 6gb per core. Only required for high memory = 42gb.

#PBS -l select=1:ncpus=1:mem=6gb

### REQUIRED. Specify "wallclock time" required for this job, hhh:mm:ss

#PBS -l walltime=0:1:0

### Optional. cput = time x ncpus. Default: cput = walltime x ncpus.

#PBS -l cput=0:1:0

# --------------------------------------------------------------

### PART 2: Executes bash commands to run your job

# --------------------------------------------------------------

### Load required modules/libraries if needed

module load python/3.6/3.6.5

#### Activate virtual environment

source ~/mypyenv_oc_py3.6/bin/activate

### change to your script’s directory

cd ~/python

### Run your work

python3 pytorch_gpus.py

sleep 10
  • A quick note about Requesting Resources and Node Types (Standard, GPU, or High Memory) via the select statement. The basic `select statement is:
    #PBS -l select=x:ncpus=Y:mem=Zgb

Where:
 x = The number of nodes or units of the resources required
 Y = The number of cores (individual processors) required on each node
 Z = The amount of memory (in mb or gb) required on each node

‘Normal’ Requests

    Ocelote
        For Ocelote all of the standard nodes have 28 cores and 6GB per core, pcmem=6gb can be added to the line or left off, and it will default to 6gm. The following select statement would request one complete node:

         #PBS -l select=28:ncpus=28:pcmem=6gb

        This is an example of a job that uses two nodes

        #PBS -l select=2:ncpus=28:mem=16gb

    El Gato
        On El Gato all of the standard nodes of 16 cores and 4GB per core. The maximum available memory on a standard El Gato node is 62GB, leaving the differences for the operating system. The following select statement would request one complete node

         #PBS -l select=1:ncpus=16:pcmem=4gb

‘GPU’ Requests

    Ocelote
        On Ocelote there are 46 Nvidia P100 nodes available with 28 cores and 224 GB of memory. Users of these nodes can use either their standard allocation of cpu hours or windfall time. Jobs that do not need GPU's will not run on them, including windfall jobs taht do no need the GPU. EAch job will have exclusive access to the node to prevent contention between the CPU cores and the GPU. Each group is limited to ten GPU nodes concurrently.

        This requests a CentOs 7 GPU node:
            #PBS -l select=1:ncpus=28:mem=224gb:np100s=1:os7=True

            or

            #PBS -l select=1:ncpus=28:mem=224gb:ngpus=1:os7=True

        This requests a CentOS 6 GPU node:

            #PBS -l select=1:ncpus=28:mem=224gb:np100s=1

        Ocelote has a single node with two GPUs that may be requested with

            #PBS -l select=1:ncpus=28:mem=224gb:np100s=2

    El Gato
        Unlike Ocelote, El Gato has cgroups enabled which allows for selecting a partial GPU node. Memory requests should be scaled by ncpusx16gb. To request a full GPU node:

            #PBS -l select=1:ncpus=16:mem=250gb:ngpus=1:pcmem=16gb

        To request a single node with two GPUs:

            #PBS -l select=1:ncpus=16:mem=250gb:ngpus=2:pcmem=16gb

An example of a GPU pbs using pytorch is as follows

#!/bin/bash

# --------------------------------------------------------------

### PART 1: Requests resources to run your job.

# --------------------------------------------------------------

#PBS -q standard

#PBS -l select=1:ncpus=28:mem=168gb:pcmem=6gb:np100s=1:os7=True

### Specify a name for the job

#PBS -N pytorch_gpus_single3

### Specify the group name

#PBS -W group_list=lecondon

### Walltime is how long your job will run

#PBS -l walltime=00:05:00

# --------------------------------------------------------------

### PART 2: Executes bash commands to run your job

# --------------------------------------------------------------

### Load required modules/libraries if needed

module load python/3.6/3.6.5

### In case needed for gpu..?

module load pytorch/nvidia/20.01

### Activate virtual environment

source ~/mypyenv_oc_py3.6/bin/activate

### change to your script’s directory

cd ~/python

### Run your work

singularity exec --nv /cm/shared/uaapps/pytorch/20.01/nvidia-pytorch.20.01-py3.simg python pytorch_gpus.py

sleep 10
  1. Submit job via qsub
    • qsub pytorch_gpus_n1.pbs2708168.head1.cm.cluster
  2. Follow job progression via qstat
    • qstat pbs2708168
  3. View results of job <jobname>.o<number> for results, <jobname>.e<number> for errors
